4x original injector stretch bolts WHT003187 for VW Audi Seat Skoda 1.6 2.0 TDI

Regular price €1295 EUR

New

Your selected vehicle

This product is checked against your saved vehicle selection.

Loading data...

Compatible vehicles

Excerpt from the TecDoc assignment for this variant.

Loading data...

OE and OEM numbers

These reference numbers help compare the removed part.

Loading data...

Description

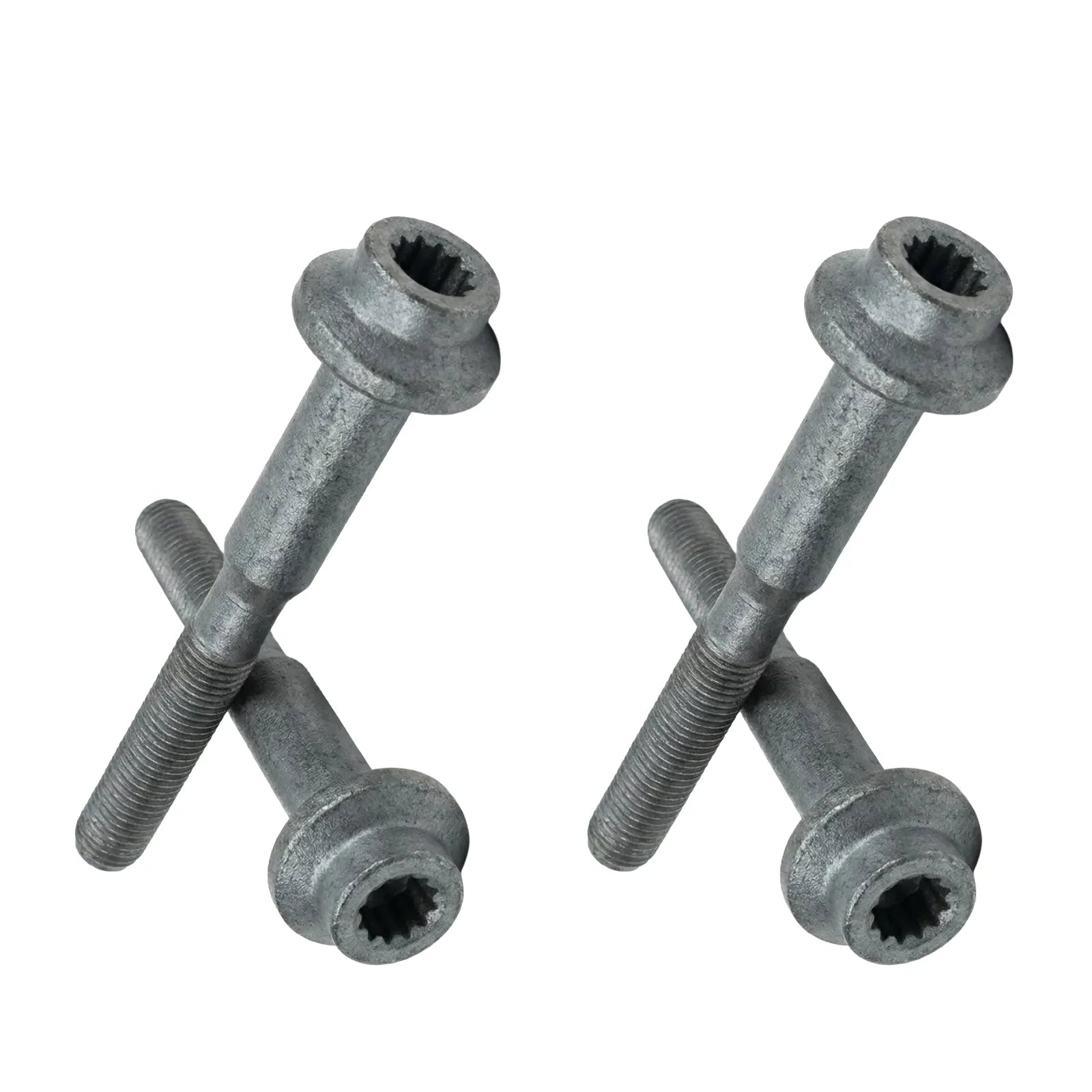

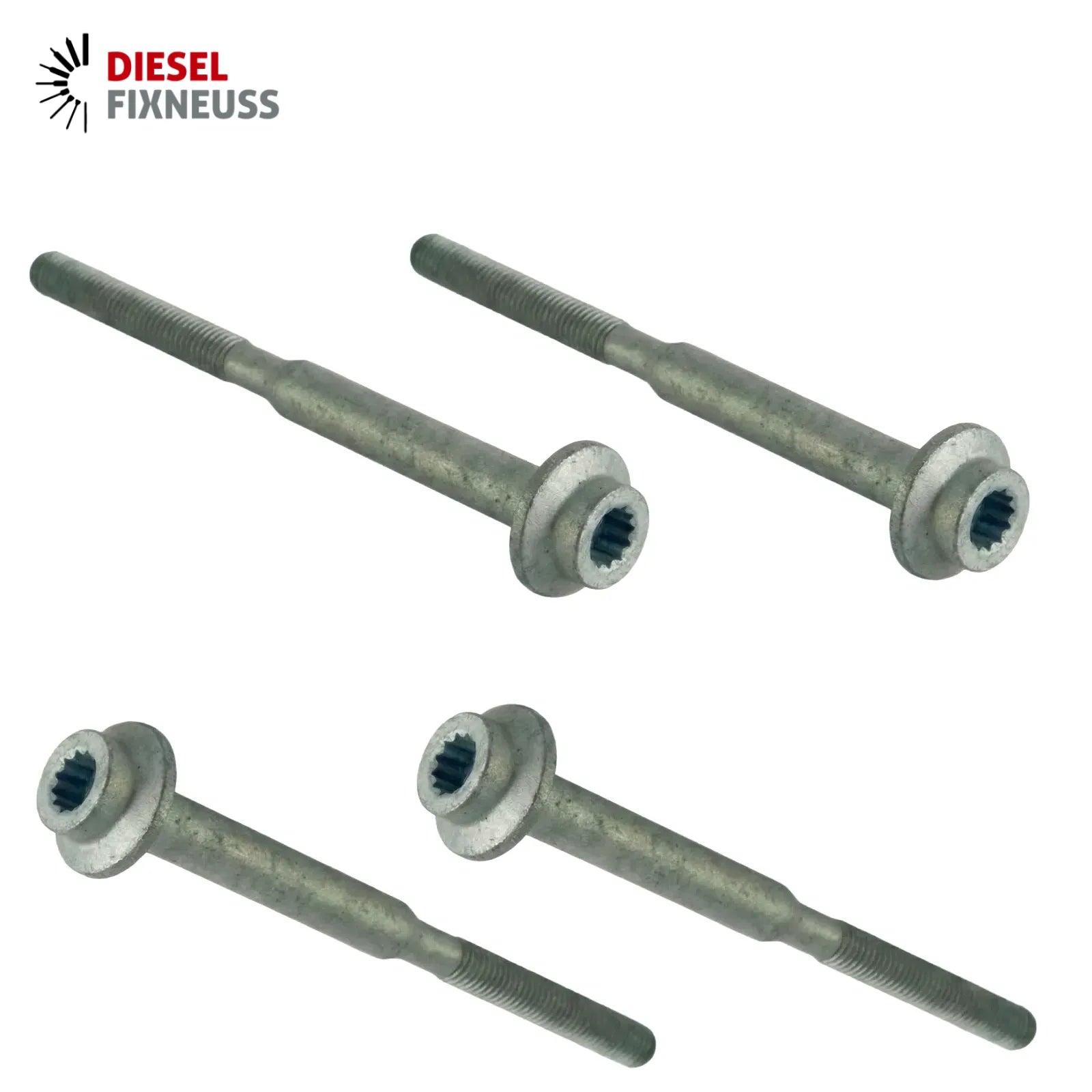

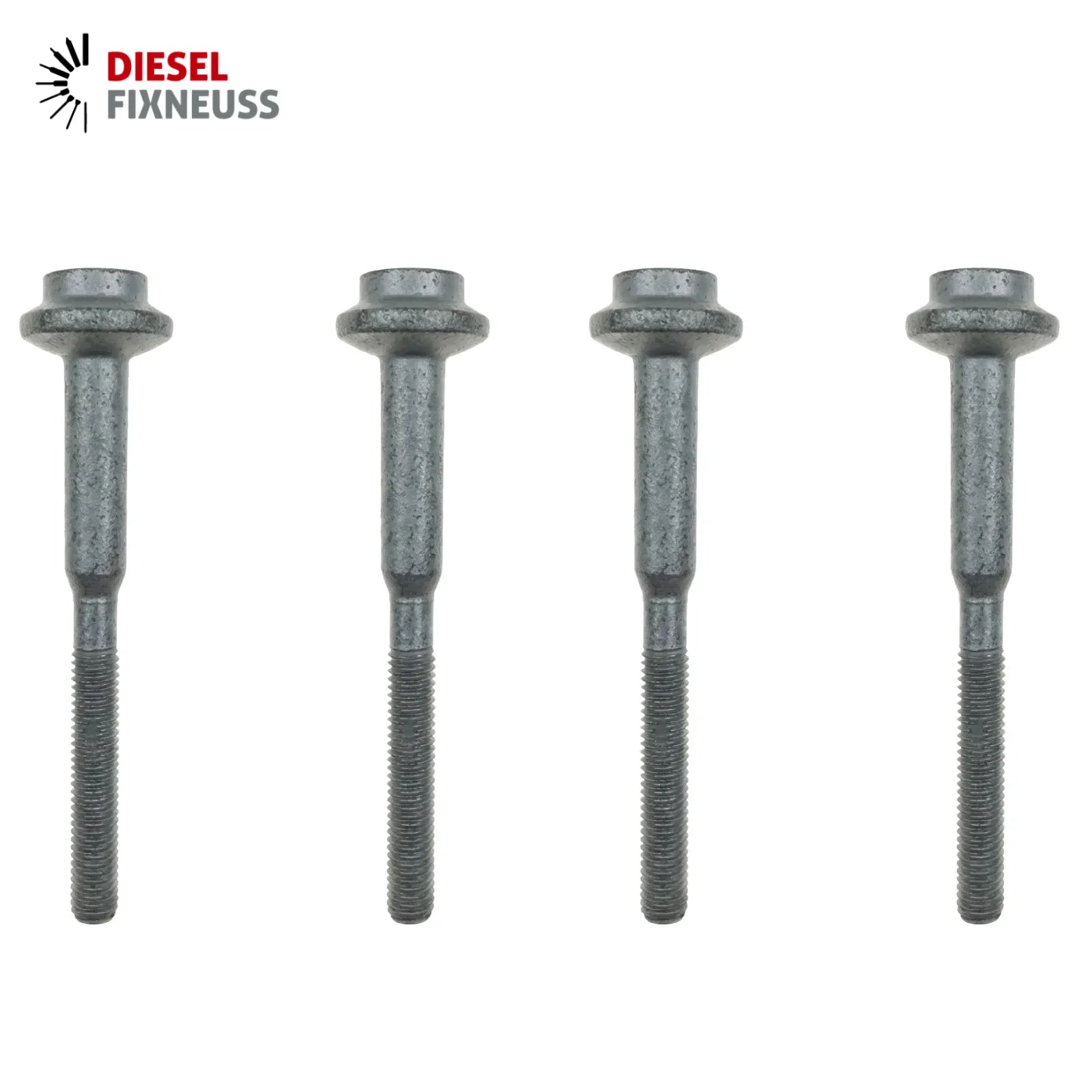

4x original injector stretch bolts WHT003187 for VW Audi Seat Skoda 1.6 2.0 TDI

Product description:
This listing is for a set of 4 genuine injector retaining bolts (clamping bolts) for VAG 1.6 TDI and 2.0 TDI common-rail engines. These bolts are designed as stretch bolts and, according to the manufacturer’s specifications, must be replaced every time the injectors are removed.

⚠️ Important installation note:
Used bolts have already undergone plastic deformation (stretched) and must never be reused! Reusing them can lead to bolt breakage or leaks at the injector. Please clean the threaded hole in the cylinder head thoroughly from oil and combustion residues before installation (risk of hydraulic lock!).

Technical data & features

  • Original part number (OE): WHT 003 187 (WHT003187)
  • Thread: M6 x 1.0
  • Length: 79 mm

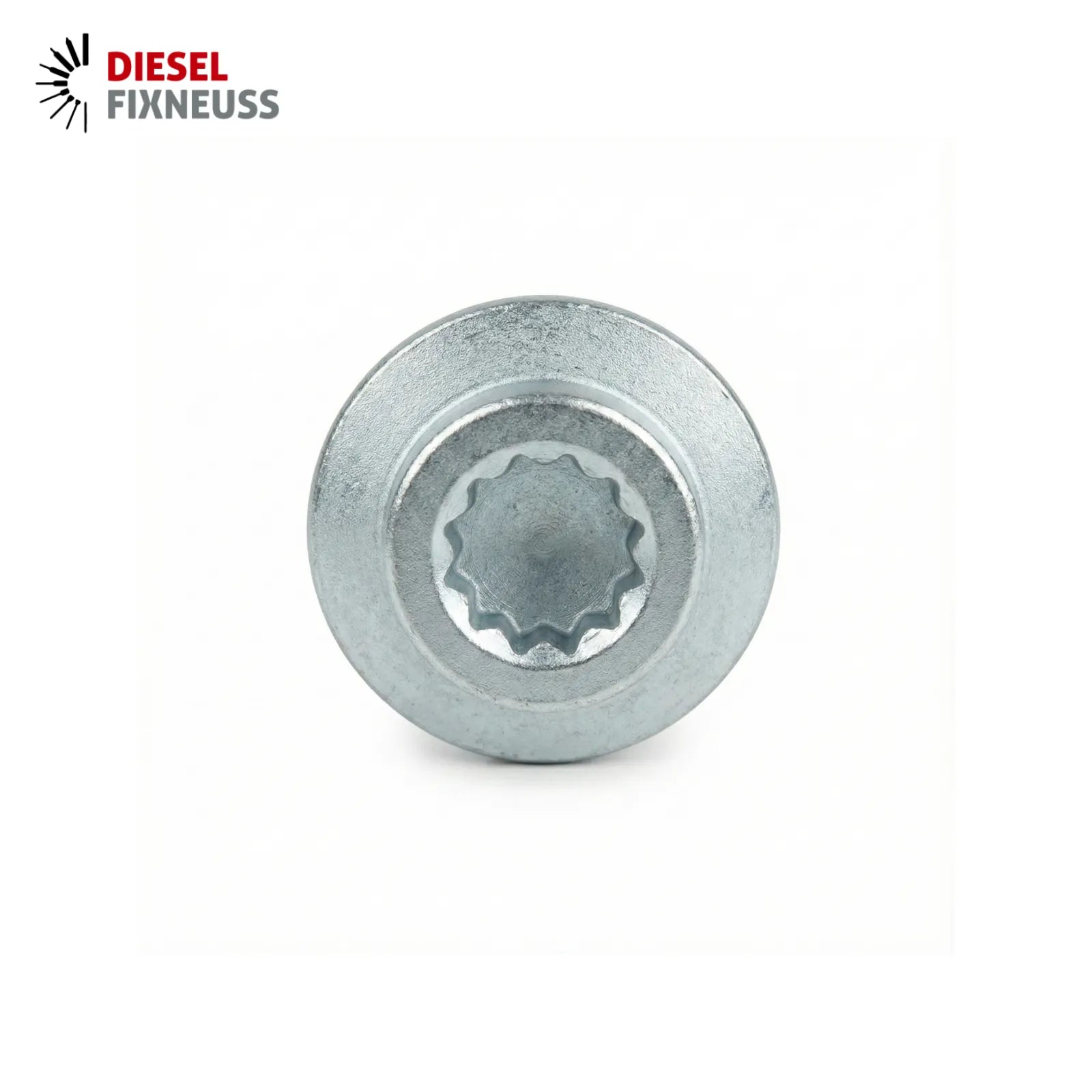

  • Drive: internal multi-spline / Torx (special tool required)
  • Type: stretch bolt (single-use)
  • Tightening torque (reference value): 8 Nm + 270°

Suitable for the following vehicles (excerpt)

Compatible with many 1.6 TDI and 2.0 TDI common-rail engines of the VAG group (VW, Audi, Seat, Skoda).

  • VW: Golf VI, Golf VII, Caddy III/IV, Passat B7, Polo 6R, Touran, Jetta, Tiguan
  • Audi: A1 (8X), A3 (8P/8V), Q3
  • Seat: Ibiza, Leon, Altea, Toledo, Alhambra
  • Skoda: Octavia II/III, Fabia II, Superb II, Yeti, Roomster, Rapid

Common engine codes: CAYB, CAYC, CAYD, CAYE, CFFA, CFFB, CFHC, CLCA, CLCB, CFGB and others.

Scope of delivery

  • 4x injector stretch bolt (WHT 003 187) – Brand new

Please compare the part number before purchase.
